！Before installation, confirm that：
This high-performance component does not comply with the laws and regulations for highway driving and cannot be used on any vehicle that has been registered or certified for use on highways. This means that the component may only be suitable for racing cars or other off-road vehicles. If it is installed on vehicles driving on the highway, legal issues will be borne by oneself.

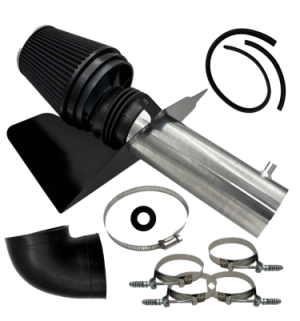

This is the installation process for the IA-0008: 2005-2010 Dodge Chrysler HEMI 5.7L 6.1L V8 Cold Air Intake w/Heat Shield,provided for your reference during installation.
Step 1:

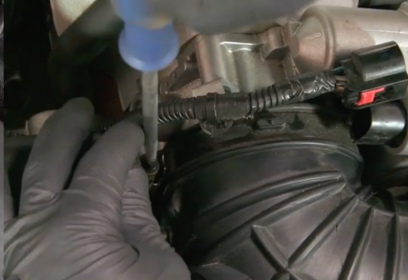

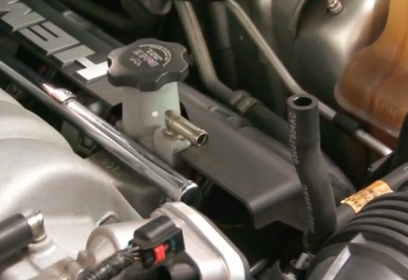

1.Disconnect the Intake Air Temperature (IAT) sensor (if equipped) and the crankcase vent hose from the factory airbox.

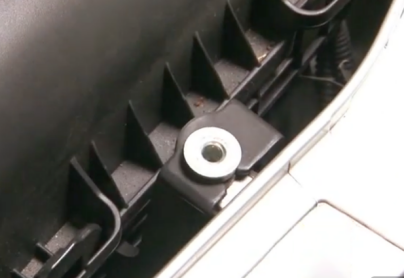

2.Remove Airbox: Loosen the clamp at the throttle body and remove the entire factory air cleaner housing.
Step 2:

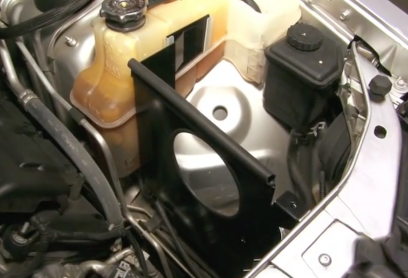

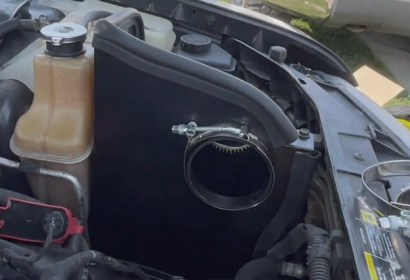

1.Install Heat Shield: Assemble and install the new heat shield into the engine bay using the factory mounting points.

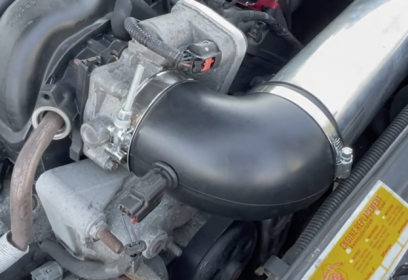

2.Install Filter: Install the air filter into the connector and make sure all the clamps are securely tightened.
Step 3:

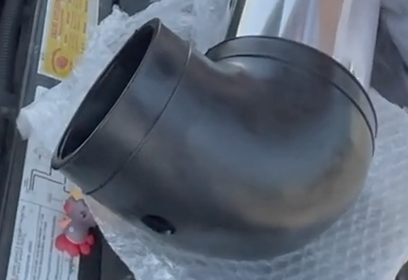

Install the air filter onto the new intake pipe. If an intake temperature sensor is equipped, make a hole in the rubber hose to facilitate insertion.
Step 4:

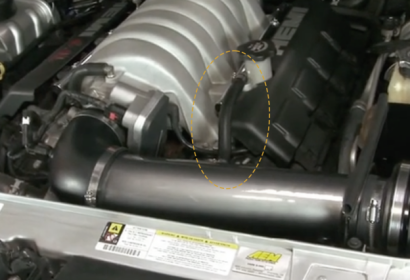

Connect Hardware: Reconnect the crankcase vent hose and the IAT sensor to the new intake tube.
This high-performance component does not comply with the laws and regulations for highway driving and cannot be used on any vehicle that has been registered or certified for use on highways. This means that the component may only be suitable for racing cars or other off-road vehicles. If it is installed on vehicles driving on the highway, legal issues will be borne by oneself.
This is the installation process for the IA-0008: 2005-2010 Dodge Chrysler HEMI 5.7L 6.1L V8 Cold Air Intake w/Heat Shield,provided for your reference during installation.
Step 1:
1.Disconnect the Intake Air Temperature (IAT) sensor (if equipped) and the crankcase vent hose from the factory airbox.
1.Install Heat Shield: Assemble and install the new heat shield into the engine bay using the factory mounting points.
2.Install Filter: Install the air filter into the connector and make sure all the clamps are securely tightened.
Install the air filter onto the new intake pipe. If an intake temperature sensor is equipped, make a hole in the rubber hose to facilitate insertion.
Connect Hardware: Reconnect the crankcase vent hose and the IAT sensor to the new intake tube.
