！Before installation, confirm that：
This high-performance component does not comply with the laws and regulations for highway driving and cannot be used on any vehicle that has been registered or certified for use on highways. This means that the component may only be suitable for racing cars or other off-road vehicles. If it is installed on vehicles driving on the highway, legal issues will be borne by oneself.

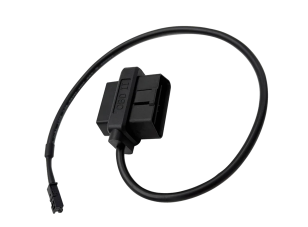

This is the installation process for the ER-0293: 2018-2023 Ram Cummins Pickup Cummins SGW Security Gateway PassThru Harness Bypass, provided for your reference during installation.
Step 1:
Please ensure that the vehicle is turned off before performing subsequent operations.
Step 2:

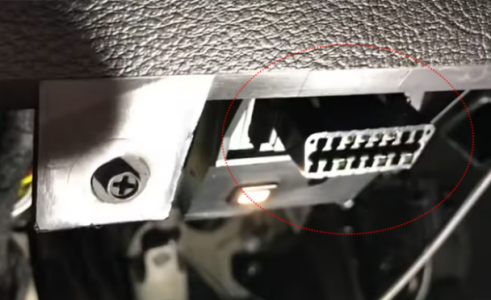

The OBD2 interface is located beneath the dashboard, usually on the driver's side. Insert the male end of the bypass wiring harness into the OBD2I interface of the vehicle, ensuring it is fully and tightly plugged in without any looseness.
Step 3:

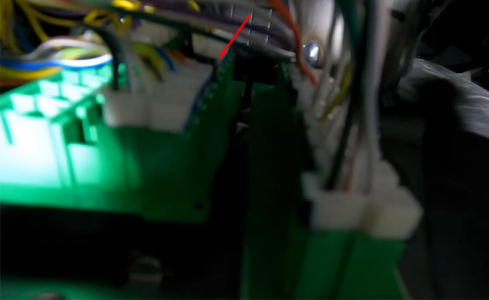

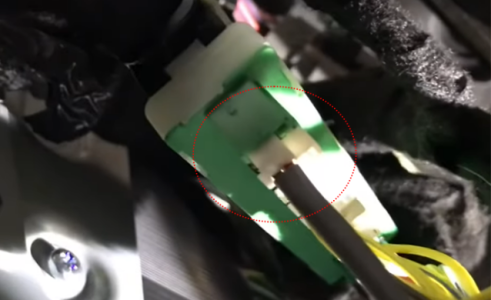

Insert the 2-pin wire bundle into the vehicle connector.The connection operation of vehicle models from different years varies slightly.
2018: Insert the 2-pin wire bundle into any empty position in the connector.
2019+ : Insert the wiring harness into the bottom row of the connector from the fifth position from the left.
Step 4:
Insert the OBD2 connector of the device to be used into the OBD-II female terminal of the wiring harness and ensure a firm connection. After use, just remove it. This cable can be reused and does not require permanent installation.
This high-performance component does not comply with the laws and regulations for highway driving and cannot be used on any vehicle that has been registered or certified for use on highways. This means that the component may only be suitable for racing cars or other off-road vehicles. If it is installed on vehicles driving on the highway, legal issues will be borne by oneself.
This is the installation process for the ER-0293: 2018-2023 Ram Cummins Pickup Cummins SGW Security Gateway PassThru Harness Bypass, provided for your reference during installation.
Step 1:
Please ensure that the vehicle is turned off before performing subsequent operations.
Step 2:
The OBD2 interface is located beneath the dashboard, usually on the driver's side. Insert the male end of the bypass wiring harness into the OBD2I interface of the vehicle, ensuring it is fully and tightly plugged in without any looseness.
Step 3:
Insert the 2-pin wire bundle into the vehicle connector.The connection operation of vehicle models from different years varies slightly.
2018: Insert the 2-pin wire bundle into any empty position in the connector.
2019+ : Insert the wiring harness into the bottom row of the connector from the fifth position from the left.
Insert the OBD2 connector of the device to be used into the OBD-II female terminal of the wiring harness and ensure a firm connection. After use, just remove it. This cable can be reused and does not require permanent installation.
