！Before installation, confirm that：
This product can only be installed on the driver's side. After installation, periodically check the upper and lower mounting positions to ensure the components are not loosened due to repeated use. If any mounting position is found to be loose, retighten the hardware as needed.

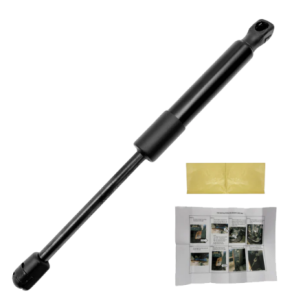

This is the installation process for the TA-D-0011: 2019-2025 Ram 1500 Tailgate Assist Shock Kit,provided for your reference during installation.
Step 1:
Lift the spring clip and slightly raise the tailgate to detach the connecting cable.
Step 2:
Step 3:
Step 4:
Step 5:
Step 6:
This product can only be installed on the driver's side. After installation, periodically check the upper and lower mounting positions to ensure the components are not loosened due to repeated use. If any mounting position is found to be loose, retighten the hardware as needed.
This is the installation process for the TA-D-0011: 2019-2025 Ram 1500 Tailgate Assist Shock Kit,provided for your reference during installation.

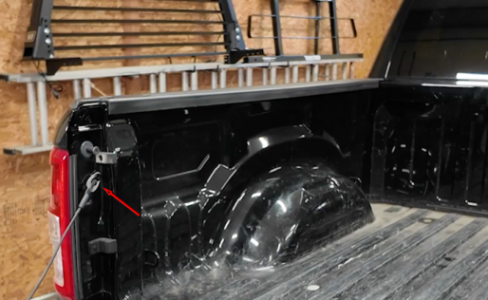

Lift the spring clip and slightly raise the tailgate to detach the connecting cable.

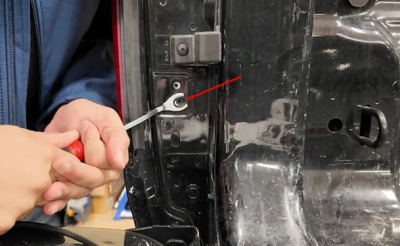

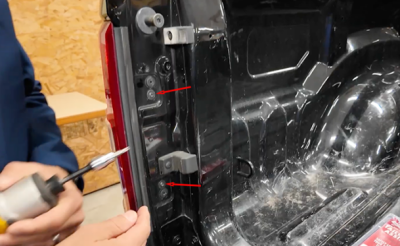

Using a T-25 screwdriver, remove the two bolts securing the taillight assembly. Subsequently, use a flathead screwdriver to pry open the two plastic clips located next to the bolts.
Step 3:

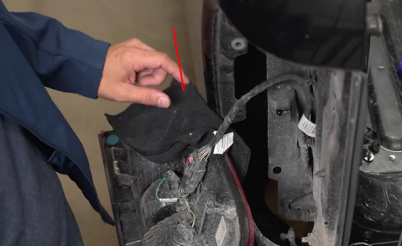

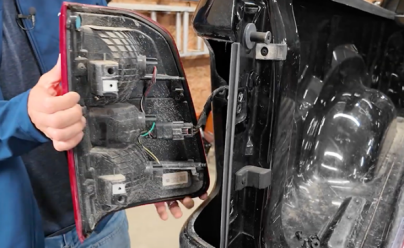

Pull the taillight assembly rearward to detach it from the vehicle body; once removed, place a soft cloth between the taillight and the body panel to protect the surfaces.

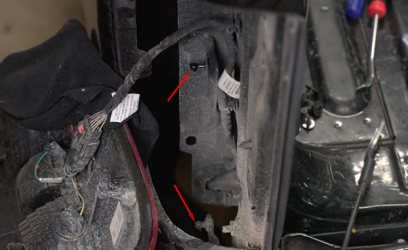

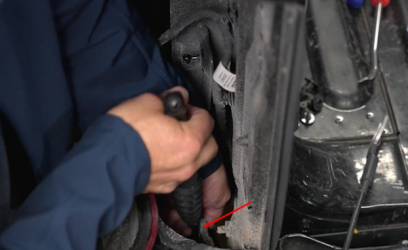

With the tailgate in the lowered position, attach the lower end of the damper to the ball stud mount shown below. The lower end of the damper is the end fitted with the rubber dust boot.

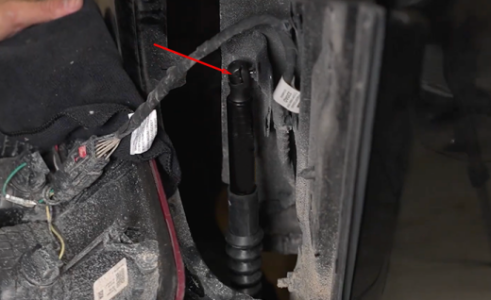

With the tailgate in the raised position, attach the upper end of the damper to the upper ball stud mount.
Lift the taillight assembly away from the vehicle body and remove the soft cloth placed between them. Gently press the taillight forward to reinstall it into its original position. Reinstall the plastic clips and the securing bolts. Reconnect the cable.
